John Deere Muffler TNCM-AT16380

John Deere Muffler TNCM-AT16380

Replaces: AT16380

Fits: 1010 (W/ Diesel Engine SN 03001>), 2010 (W/ Diesel Engine SN 029001>)

Specs

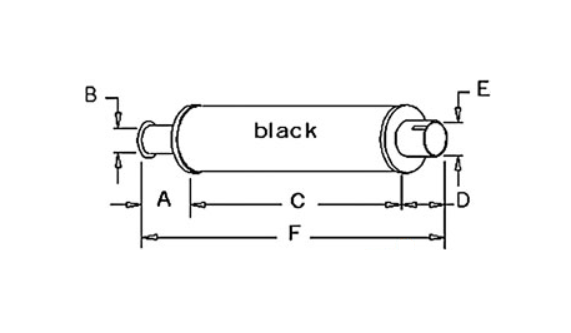

• Vertical / Round Body - 4 1/4" Shell Diameter. Inlet Is Flared
Dim A (1) A: 3 1/2" INLET LENGTH
Dim B (2) B: FLARED INLET
Dim C (3) C: 17" SHELL LENGTH
Dim D (4) D: 3 1/2" OUTLET LENGTH
Dim E (5) E: 2 1/4" OUTLET O.D.
Dim F (6) F: 24" OVERALL LENGTH
Inlet Inside Diameter 2.125"
