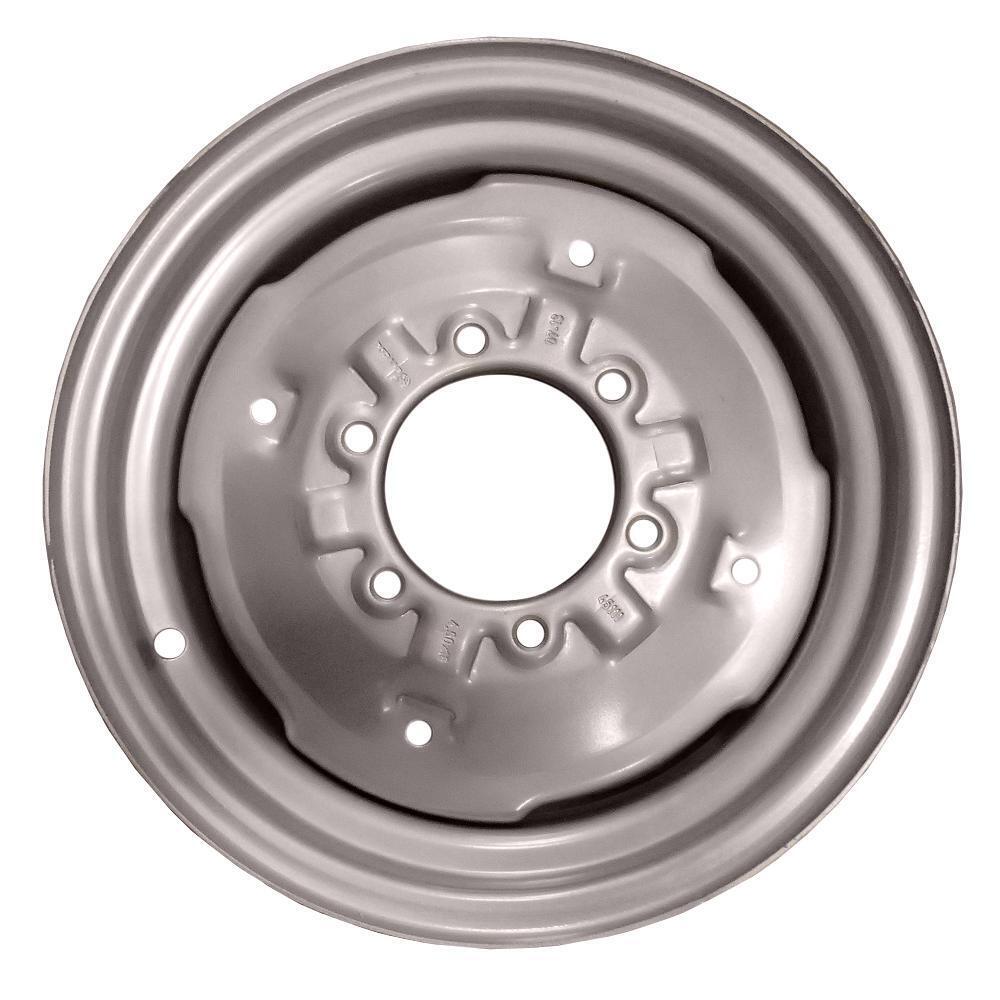

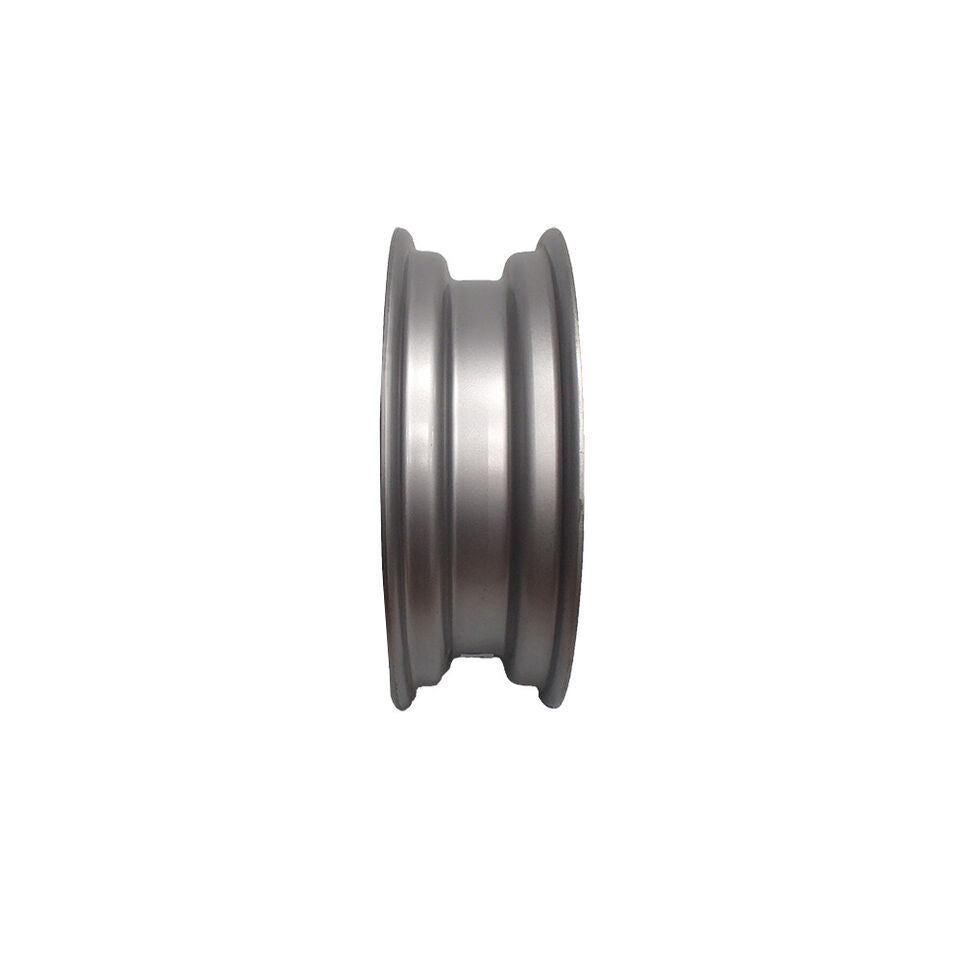

John Deere Front Rim (4.5" X 16") TNCR-AR52506

John Deere Front Rim (4.5" X 16") TNCR-AR52506

Replaces: AR52506, AL17847, AN241675, JD3002

Fits: 1020, 1120, 1130, 1520, 1530, 2020, 2030, 2040, 2120, 2150, 2155, 2240, 2355, 2440, 2510, 2630, 2640, 3010, 3020, 40, 4040, 4240, 430, 435, 820(3 Cyl.), 830, 830(3 Cyl.), 920

Specs

• Capacity based on 20 MPH max speed.
• The offset is determined by the location & distance of the center disc in relation to the centerline of the rim.
• 6.00" Bolt Circle
Capacity: 2300 lbs
Lugs: 6
Offset: 1.50" Positive
Pilot Hole: 4.625"
Size: 4.5" x 16"
