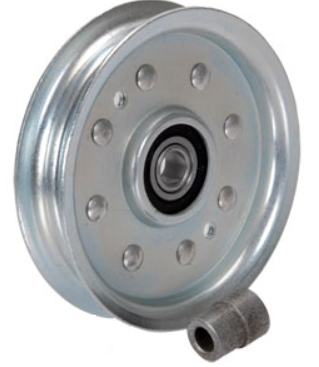

John Deere Flat Idler TNCFI-B1CO46
John Deere Flat Idler TNCFI-B1CO46
Couldn't load pickup availability
John Deere Flat Idler TNCFI-B1CO46
Replaces: AM107468, AM35862, AM37249, AM37442
Fits: 38, 39, 41, 46, 47, 48, 108, 111, 111H, 112L, 116, 116H, 120, 130, 140, 160, 165, 170, 175, 180, 185, 200, 210, 212, 214, 216, 208, 240, 245, 260, 265, 285, 300, 312, 314, 316, 317, 318, 320, 322, 325, 330, 332, 335, 345, 355D, 420, 425, 430, 445, 455, F510, F525, G100, GT225, GT235, GT235E, GT242, GT262, GT275, GT245, GX255, GX325, GX335, GX345, GX355, LT170, LX172, LX173, LX176, LX178, LX186, LX188, LX280, LX289, RX63, RX73, RX75, RX95, SX75, SX95, SRX75, SRX95, S2048, S2348, S2554, SST18, STX30, STX38, 1842GV, 1842HV, 1848GV, 1848HV, 1948GV, 1948HV, 2048HV, 2148HV, 2254HV, 2354HV, 2554HV, X300R, X305R, X324, X465, X475, X485, X495, X500, X520, X530, X540, X565, X570, X575, X580, X585, X590, X595, X700, X720, X724, X728, X740, X744, X748
Specs
| • Flat Idler w/ flanges. Steel. Mower blade deck idler. | |
| • Fits John Deere 38", 39", 47" and 48" decks. | |
| Dim A (1) | 4-5/8" |
| Dim B (2) | 4" |
| Dim C (3) | 3/8" |
| Dim D (4) | 11/16" |
| Dim E (5) | 11/16" |
| Dim F (6) | 5/16" |
| Dim H (8) | 1/8" |
| Dim T | .074" |
| Includes | 3/8" reducer bushing |
| Inside Diameter | 3/8" |
| Material | Steel |
| Outside Diameter | 4-5/8" |
